Recreational Samples

Click to enlarge samples where applicable.

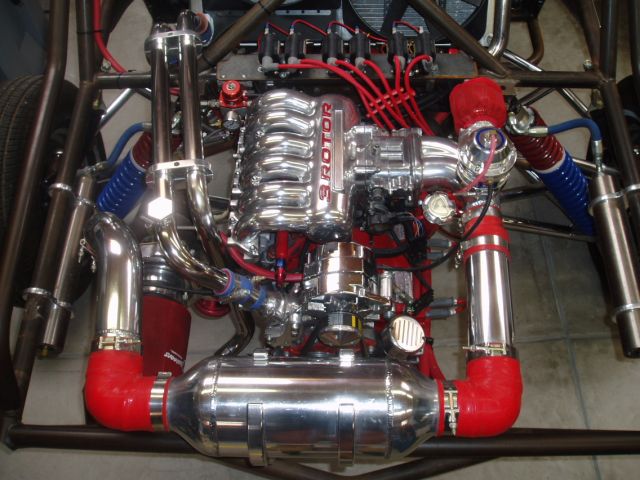

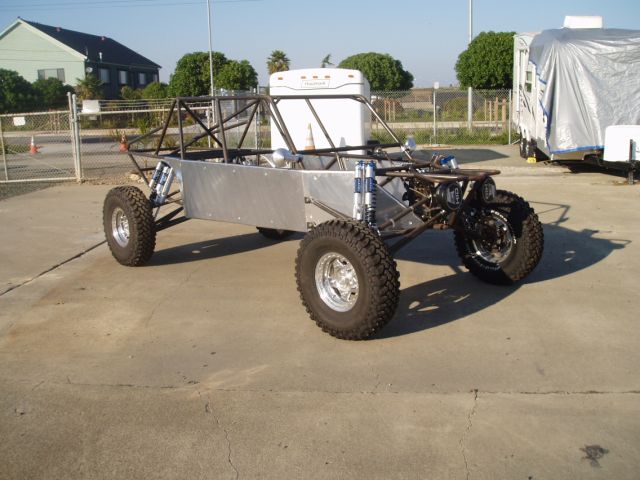

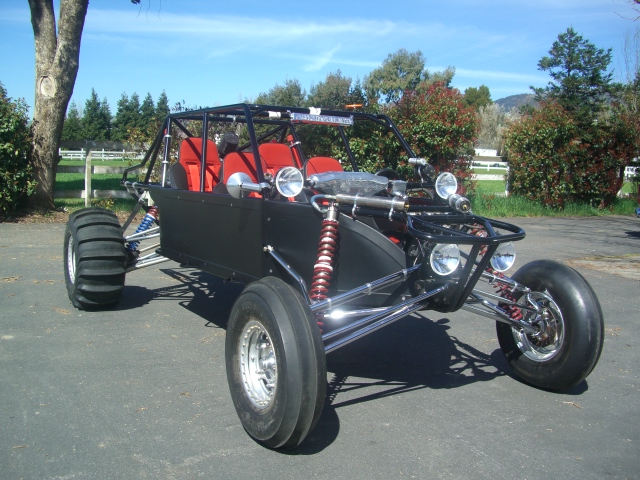

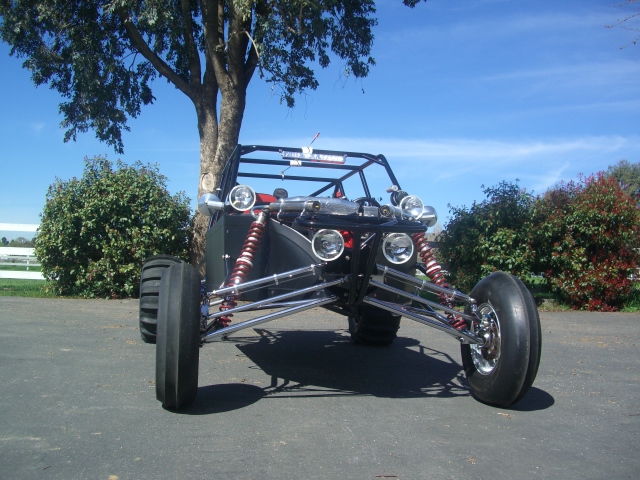

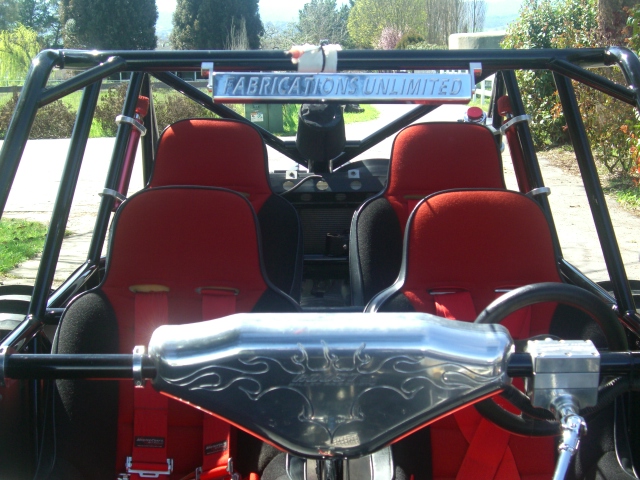

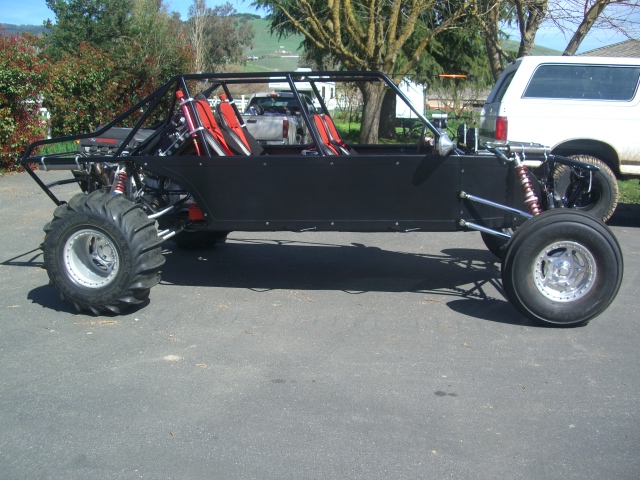

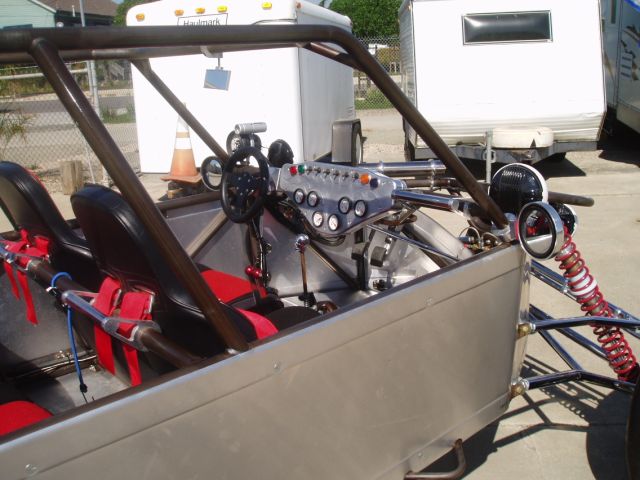

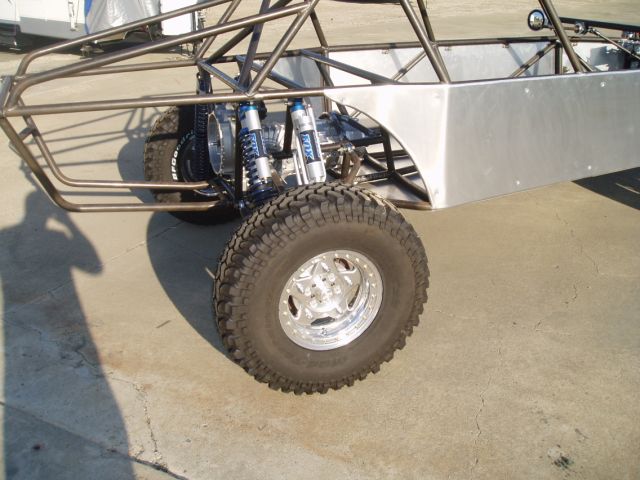

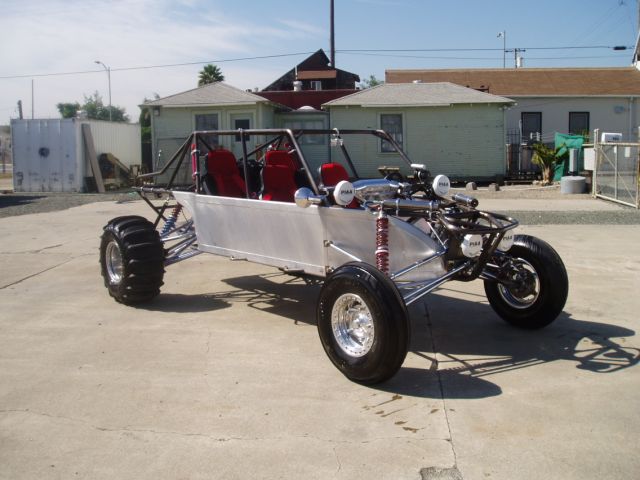

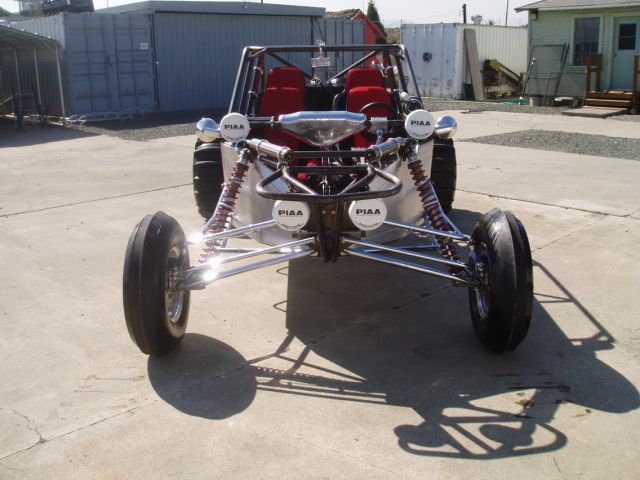

Long travel sandrail
  • 4 seat chassis
  • Mazda 20B (3 rotor) engine

    more pictures

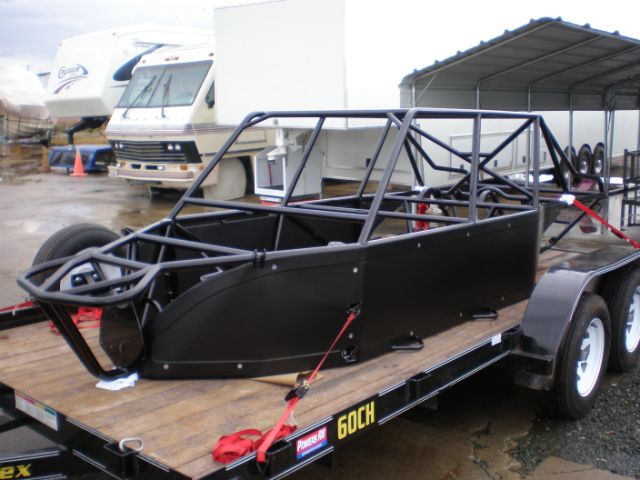

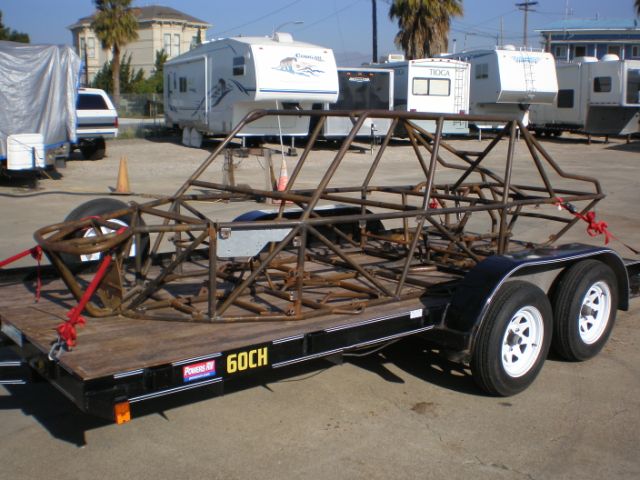

  • Custom powder coated Sandrail Chassis Before and After

    Before Pic | After Pic

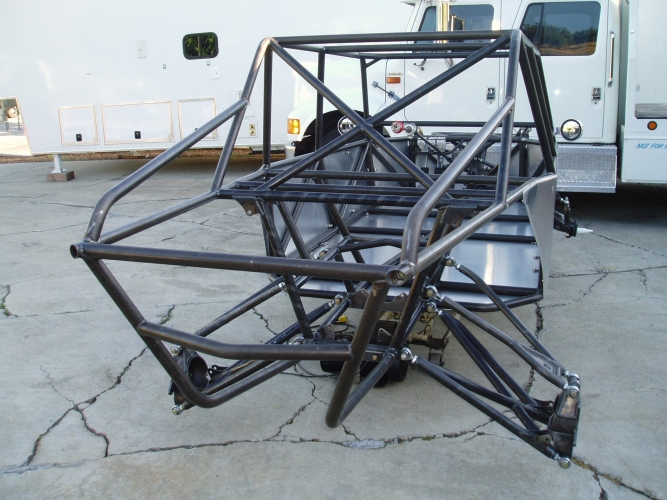

    Full Chenowth Race Car Chassis available from Kit Form to Turn-Key from MILD to WILD!

    Pic 1 | Pic 2

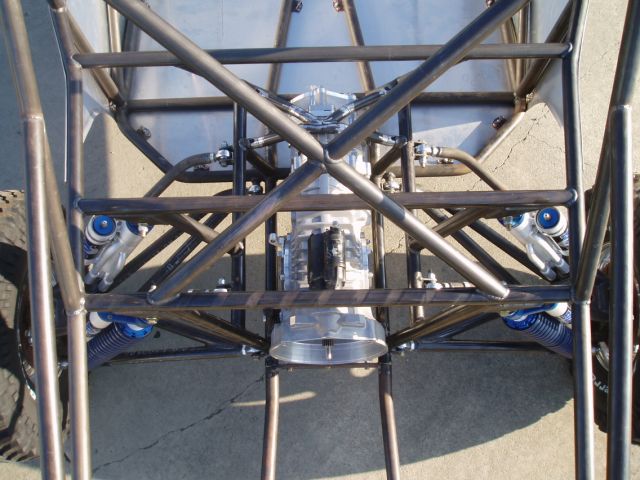

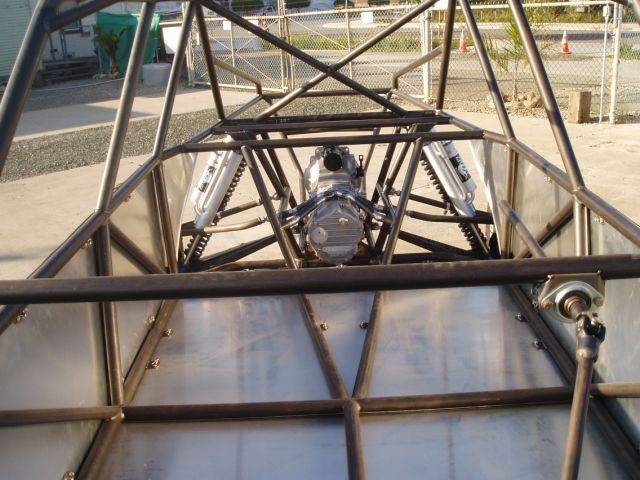

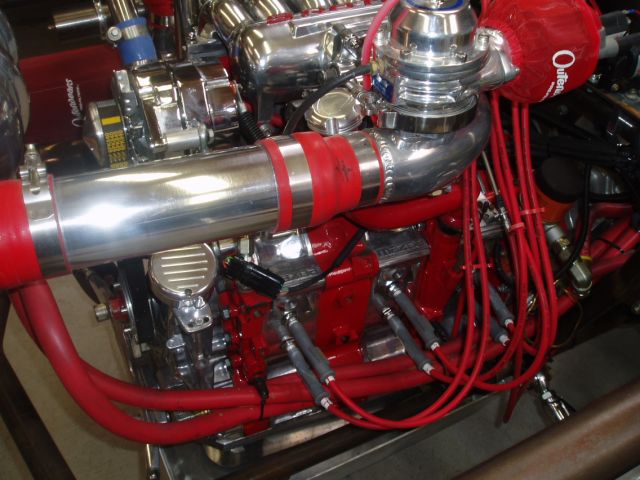

    Chenowth Exodus 4 Seater Chromoly 700 hp Mazda Triple Rotor

    Pic 1 | Pic 2 | Pic 3 | Pic 4 | Pic 5

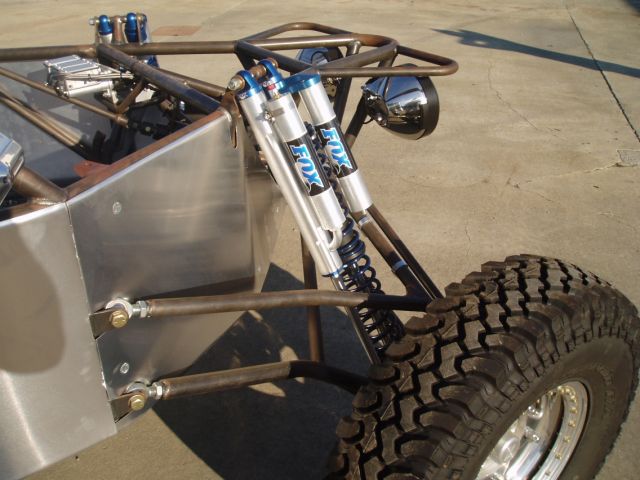

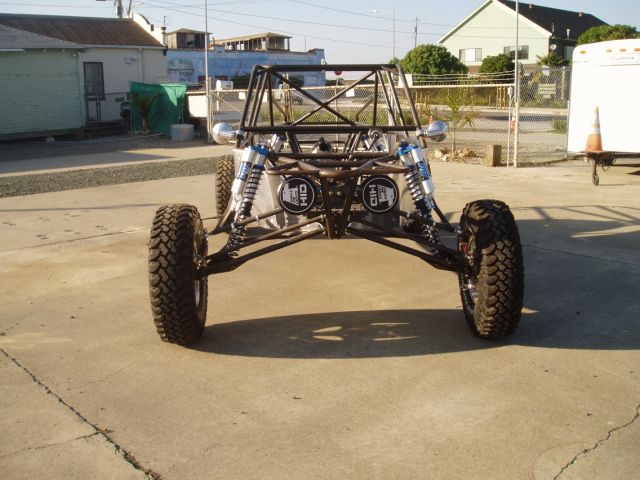

    Custom ordered Chenowth Exodus 4 Seat Chassis 2006 A-Arm Desert Pre Runner Car with 20” of suspension travel. Chromolly chassis, Fox Racing Internal Bypass Coilovers with Bypass Shocks, Power Steering, Douglas Beadlocks, BFG Tires, Mendoela Sequential Paddleshift Transmission, Eagle Eye Lights, 2 Piston Gear One Brakes in front and 4 Piston Gear One Brakes in rear, CNC hang down pedals,. This Pre Runner Car has been sold but you can order yours today by contacting us.

    Pic 1 | Pic 2 | Pic 3 | Pic 4 | Pic 5| Pic 6 | Pic 7

    2007 Four Seat Exodus Chassis with Honda V6 Engine

    Pic 1 | Pic 2 | Pic 3 | Pic 4

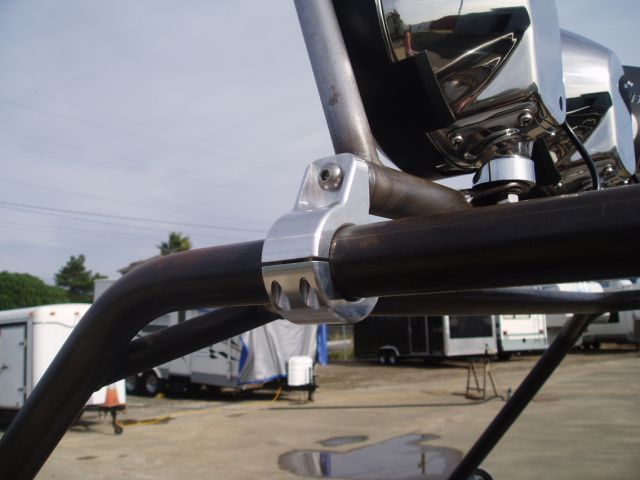

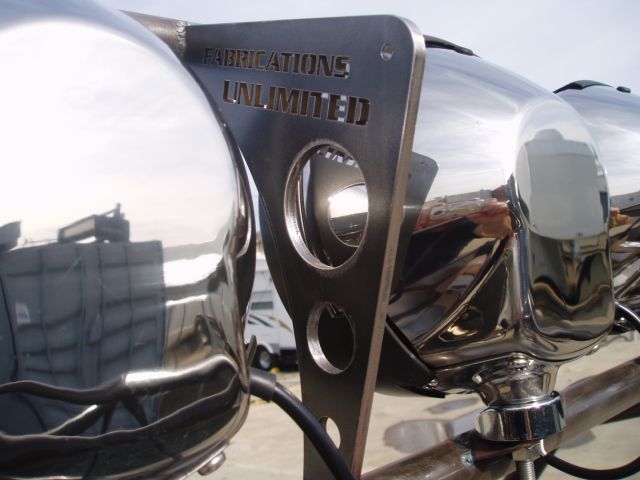

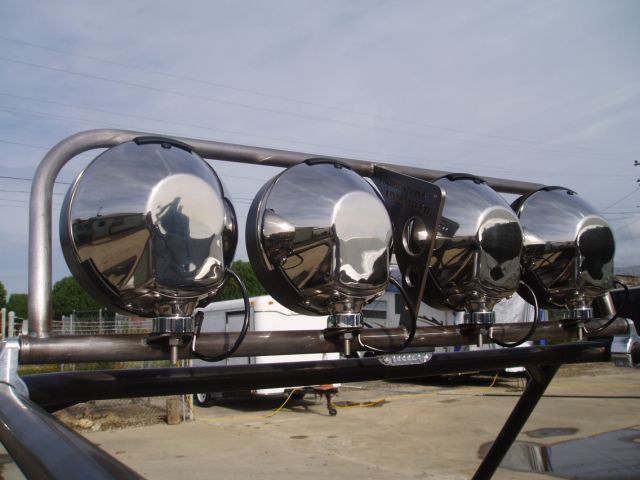

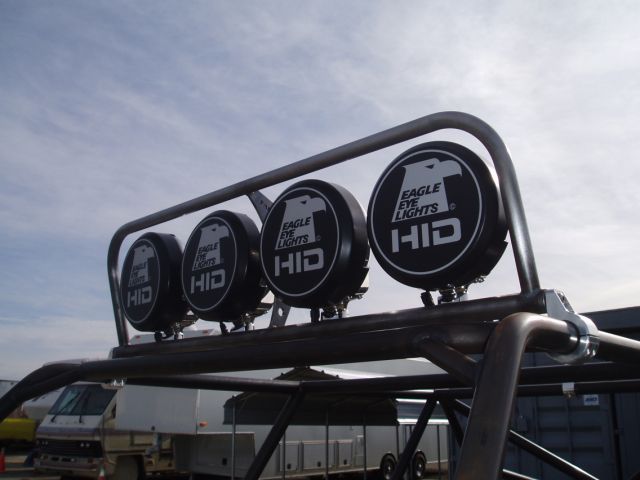

    Custom Fabricated Light Bar with Billet Aluminum Clamps Eagle Eye 8” H.I.D. Bar is set up for Linear Actuator Available in Steel or Stainless.

    Pic 1 | Pic 2 | Pic 3

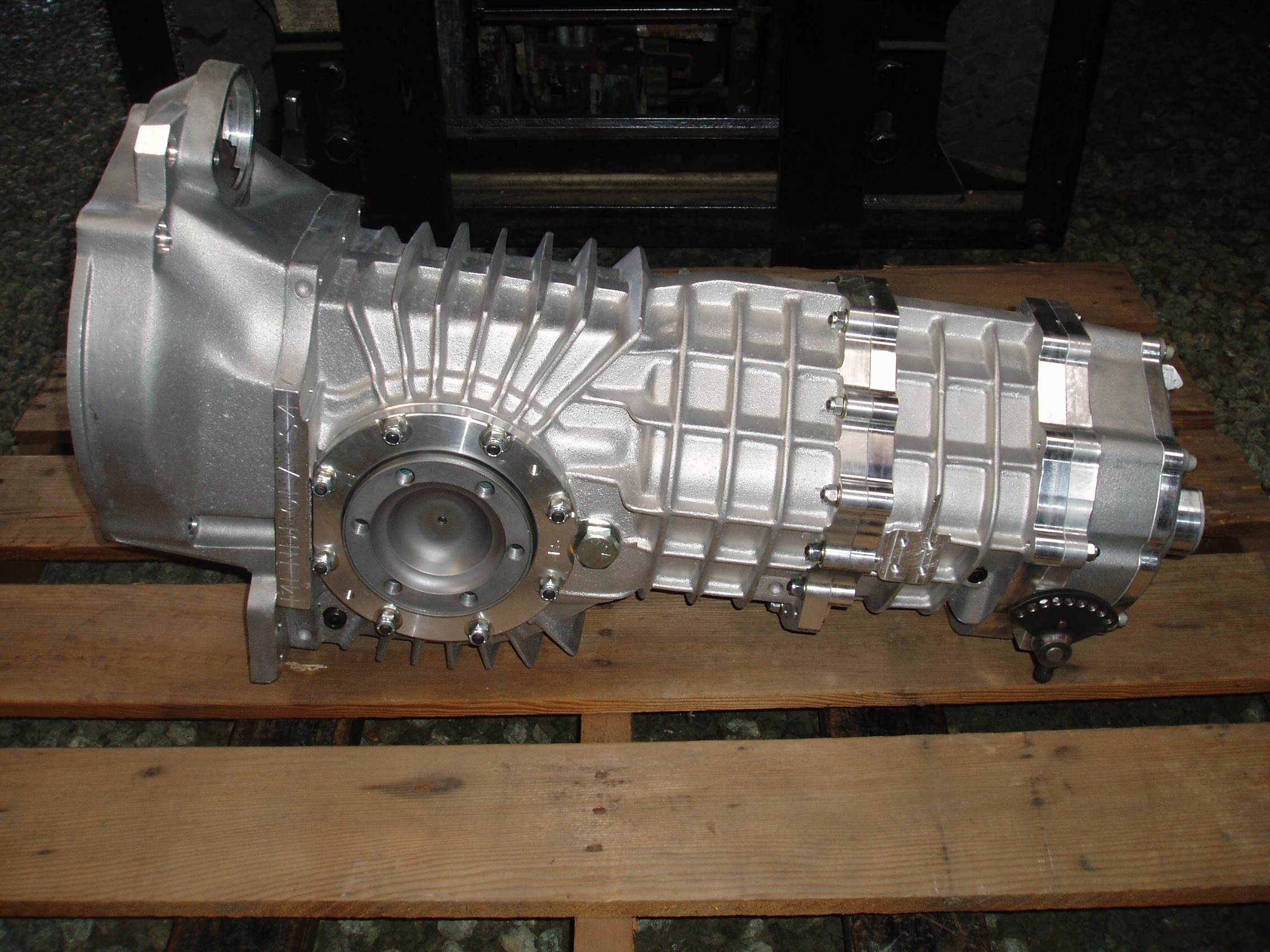

    Mendola S4S Sequential Paddle Shifter Transmission available for purchase.

    Custom car rack
  • Fits on top of International
  • Removable loading ramps
  • Removable from truck
  • Show quality Honda TRX-250R
  • 330 motor
  • Chrome
  • Powder paint

  • Go Kart custom tire rack
  • Mild steel tubing
  • Mig welded

  • 2003 Custom Invader Race Kart
  • Briggs and Stratton Racing Animal Engine
  • 4 Wheel Disc Brakes
  • Powder Coated Chassis
  • Many custom alloy components

    Click here for another picture.

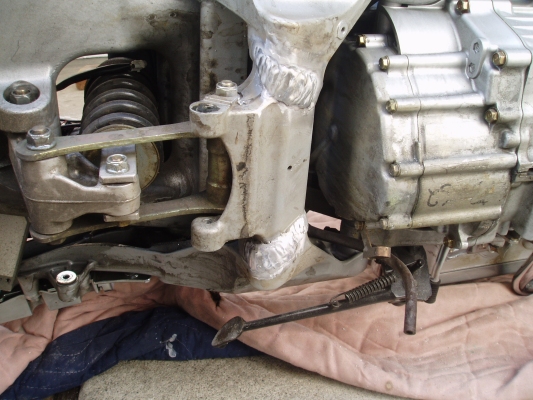

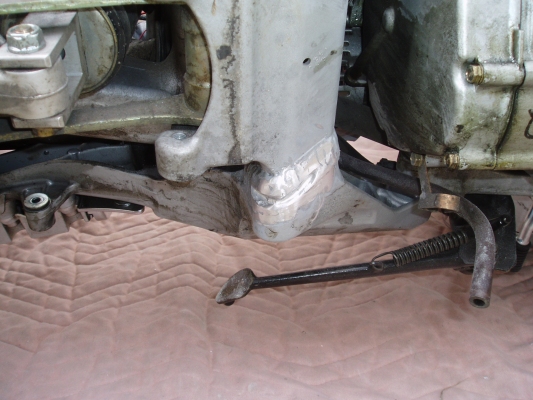

  • Honda Goldwing (Factory Recall) Frame Repair for American Honda Motor Co.

    Pic 1 | Pic 2

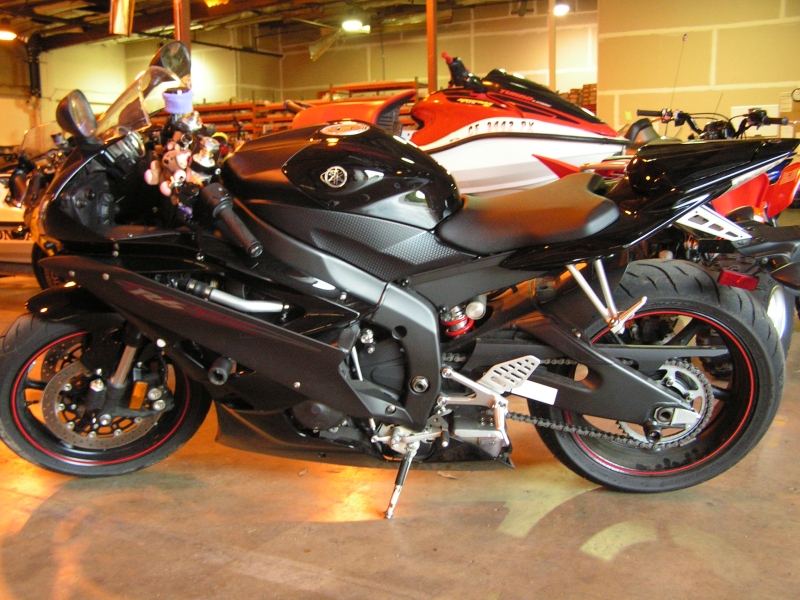

    Yamaha R6 Street Bike modified for a short rider

    Pic 1 | Pic 2

    2004 Honda TRX 450R
  • Denton Steering Stabilizer
  • Honda HRC hop-up kit, cam/jetting, air box modifications and exhaust
  • Motion Pro twist throttle

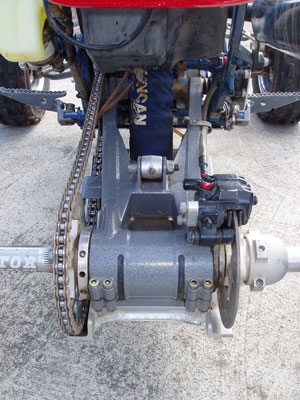

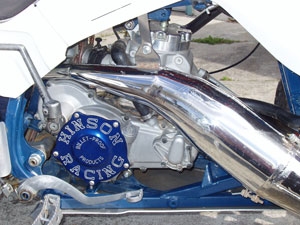

  • 1989 Honda TRX-250R
    330 kit / Full custom suspension
    Chassis Features
  • 1989 Honda TRX250R
  • Powder coated frame, 2-stage
  • Laeger +2 A-arms
  • Laeger swing arm
  • Laeger steering stem
  • PEP shocks
  • +4 Dominator axle
  • Tapered bearing carrier
  • Anti fade lock nut
  • Renthal handle bars
  • Pro design kill switch
  • Graydon bumper & grab bar
  • Pia headlights
  • Denton steering stabilizer
  • IMS desert tank
  • Front and rear skid plates
  • Steel braided brake lines
  • Nac's seat cover
  • 86' nose piece
  • Pro design shifter
  • Skat trak paddle tires
  • Blade front tires
  • Douglas red label wheels
  • OMF seat bracket kit

    Engine & Drive train Features

  • Niks 330 kit
  • Keihin 39mm carb
  • Pro Design Cool head
  • LRD Chrome pipe
  • FMF silencer
  • LA Sleeve Hot Rod and new crank bearings
  • Baldwin Motorsports Heavy duty gear set
  • Ricky Stator high output stator
  • Barnett dirt digger clutch
  • Hinson clutch basket
  • Hinson quick change clutch cover
  • Magura hydraulic clutch actuator
  • Gas & Gunner twist throttle
  • Rad valve kit
  • K&N air filter
  • Outerwear's

    Pic 1 | Pic 2 | Pic 3

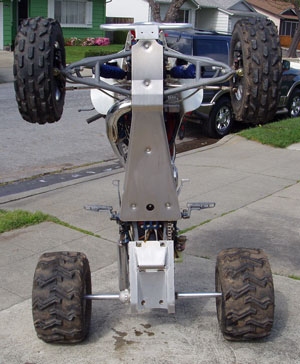

  • 2003 Yamaha Raptor
  • Aluminum TAG Bars
  • Denton Steering Stabilizer
  • Full Chassis Skid Plate
  • Stage 3 jetting
  • Motion Pro twist throttle kit
  • White Bros full stainless steel exhaust
  • Works Shocks
  • Lonestar Racing chrome front A-arms
  • AC Racing aluminum grab bar
  • AC Racing bumper
  • Sand skate II paddles
  • Dune trackers

    Click here for another picture.

  • 2004 Yamaha 450 YFZ
  • Custom jetting
  • Pro Flo air cleaner and flange
  • Yoshimura exhaust
  • Lonestar +2 A-arms
  • Lonestar Racing axle
  • TAG T2 racing bars
  • TAG grips
  • TAG triple clamp
  • Sandstar rear paddles
  • ITP wheels

    Pic 1 | Pic 2

  • Custom Down Rigging Brackets for Cope and McPheters Marine

    Click here for another picture.

    Fabricated and Powder Coated 20" LCD TV Mount for TPD Trailer

    Pic 1 | Pic 2

    KTM Sub Frame Modifications

    Honda CR Rear Sub Frame Repair

    Pic 1 | Pic 2 | Pic 3 | Pic 4

    Front seat relocation on Sandrail:
    Front seats hung about 2" below the frame and sat in a reclined position. Customer wanted to raise seats above bottom of frame and sit in a more upright position.

    Pic 1 | Pic 2 | Pic 3

    Honda Odyssey Customed Water Cooled Conversion Kit

    Pic 1 | Pic 2 | Pic 3

    Battery swap on Sandrail:
    Replaced old flooded type battery with a sealed Odyssey battery. Removed old battery mount and welding a new one on.

    Pic 1 | Pic 2

    Fully Race Prep CRF250 Engine

    2003 Yamaha Banshee
    Custom motor bored and stroked 502 cc

    1999 Kawasaki Vulcan Drifter Pipes

    Propellers are available: repaired, balanced and custom CNC machined propellers.

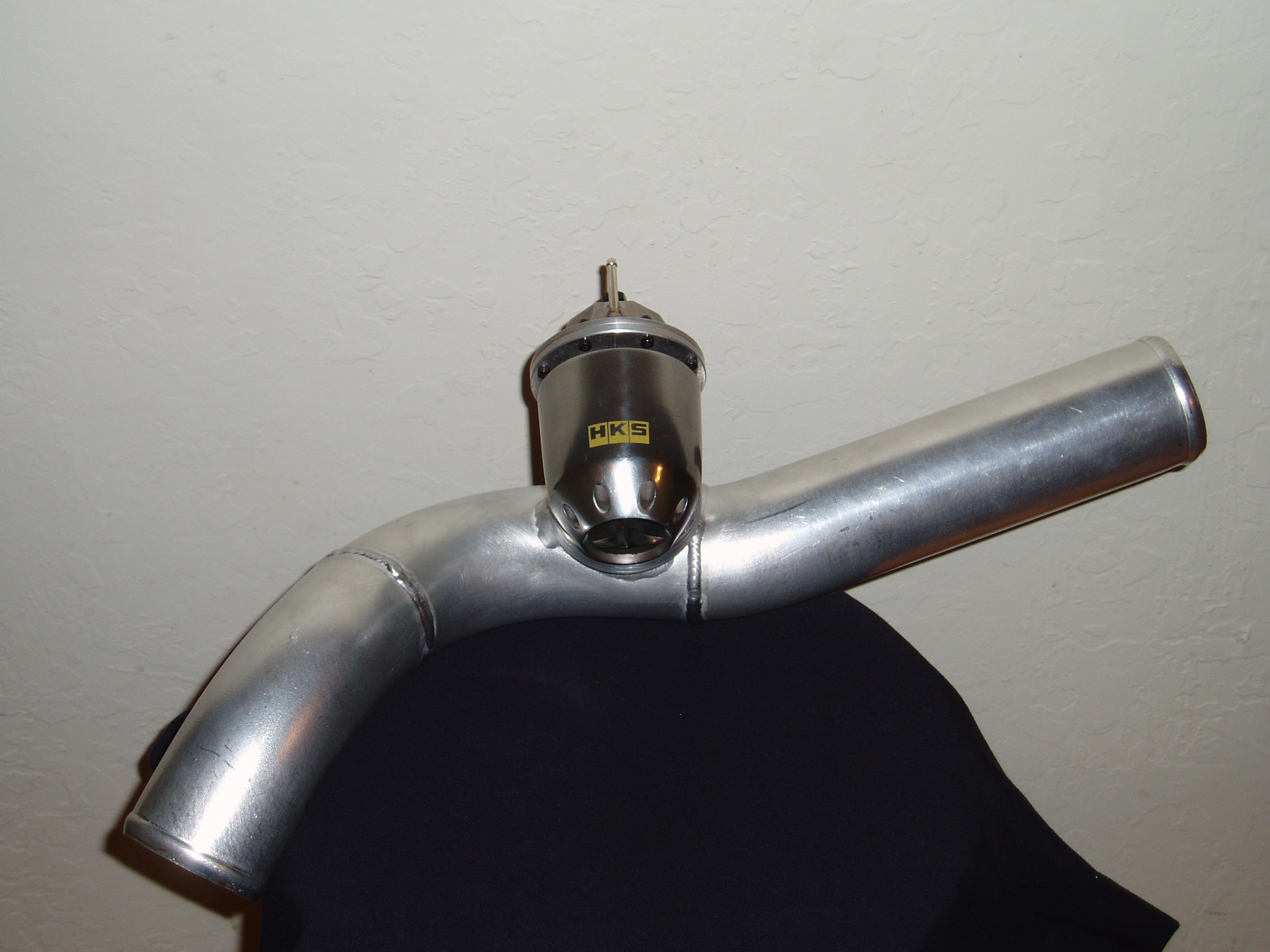

    Custom Turbo HKS Blow Off Valve Pipe

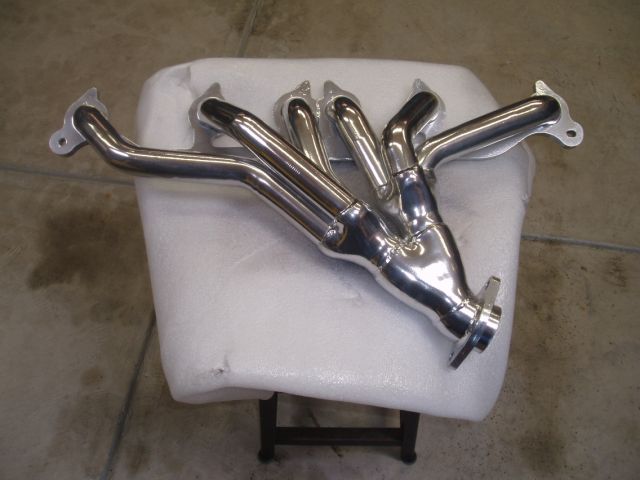

    High Temp Ceramic Coating on Exhaust Manifold

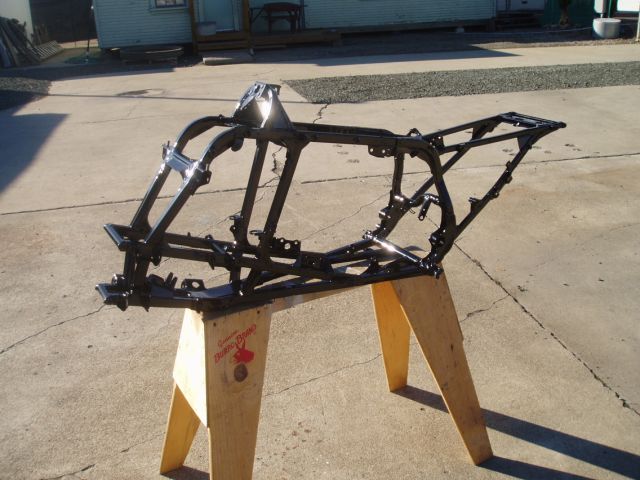

    This is a 1988 TRX 250R Gloss Black Powder Coated Chassis

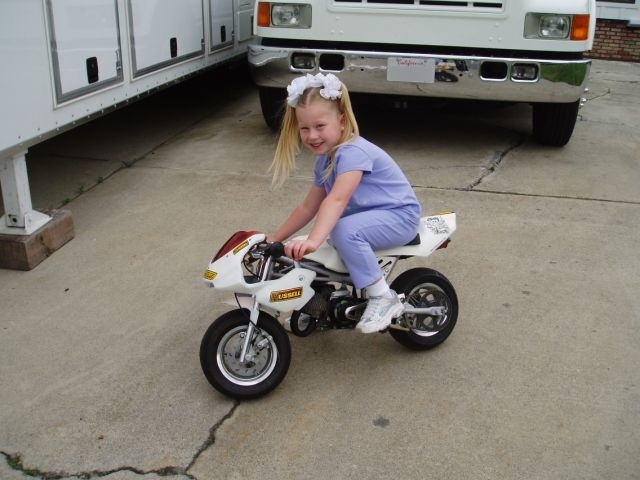

    Custom Modified Pocket Bike with Ported Head, Big Bore Cylinder Head, Modified Carb, Custom Exhaust. Top speed 85 mph.

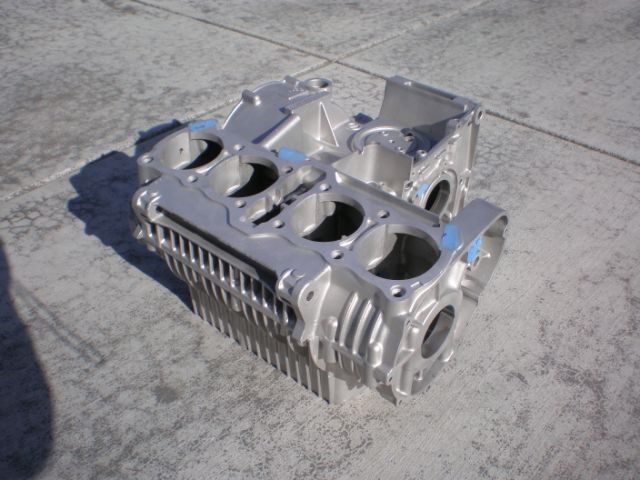

    Machined and Bead Blasted Kawasaki Engine Block

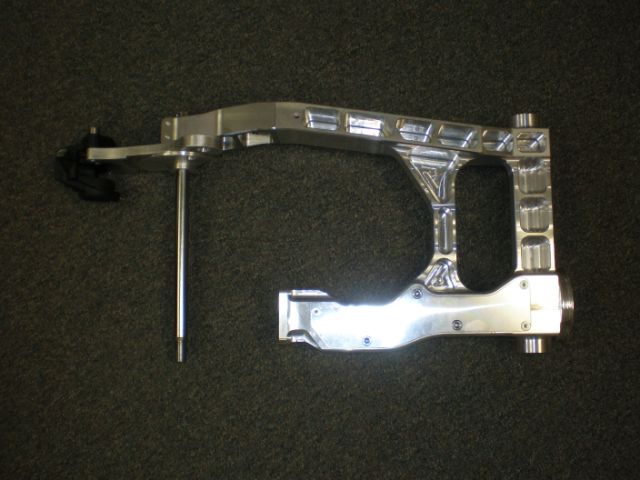

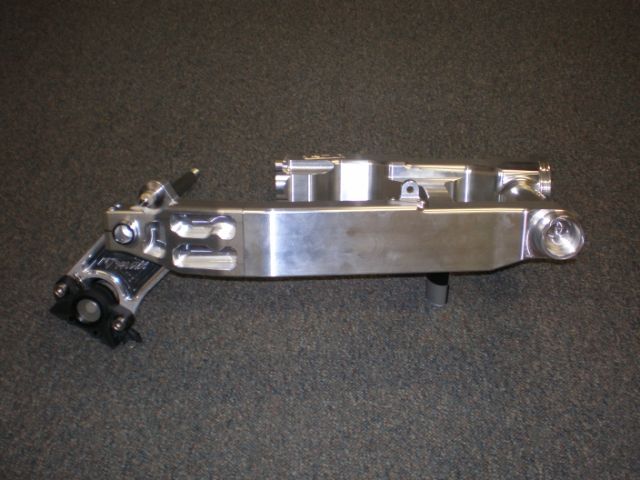

    Custom machined Swing Arm for Yamaha VMax

    Pic 1 | Pic 2

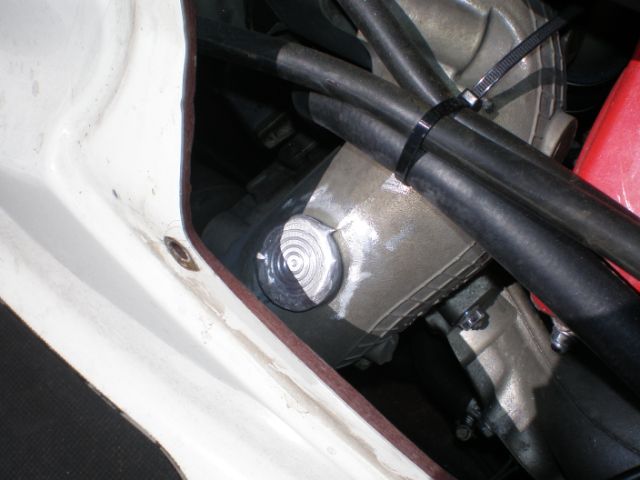

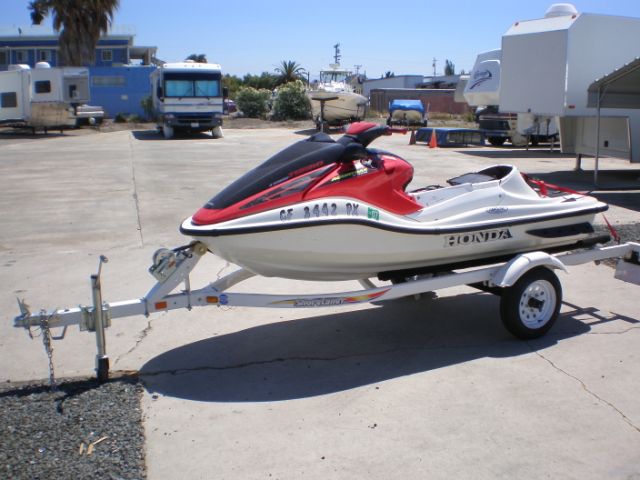

    Manifold Freeze Plug Repair for Honda Turbo AquaTrax for Milpitas Motorsports

    Pic 1 | Pic 2

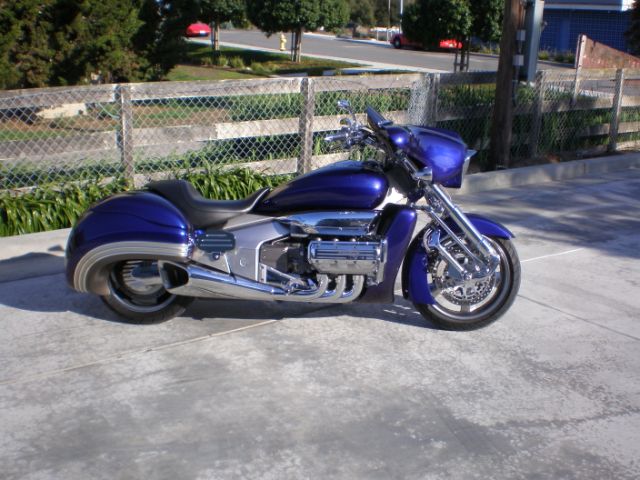

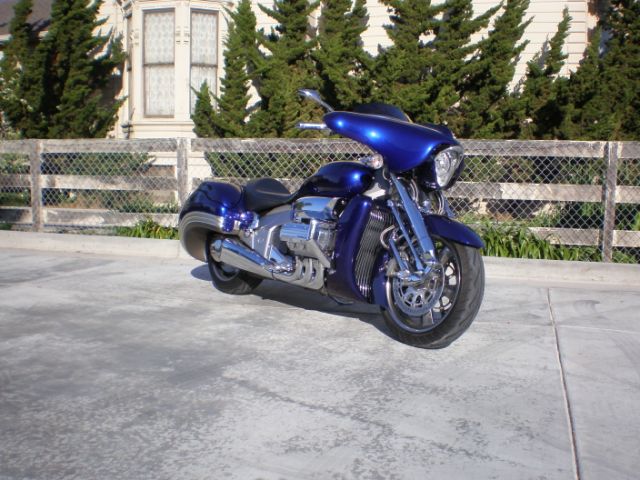

    Honda Rune

    Lowered, custom side bags, custom fairing and paint

    Pic 1 | Pic 2

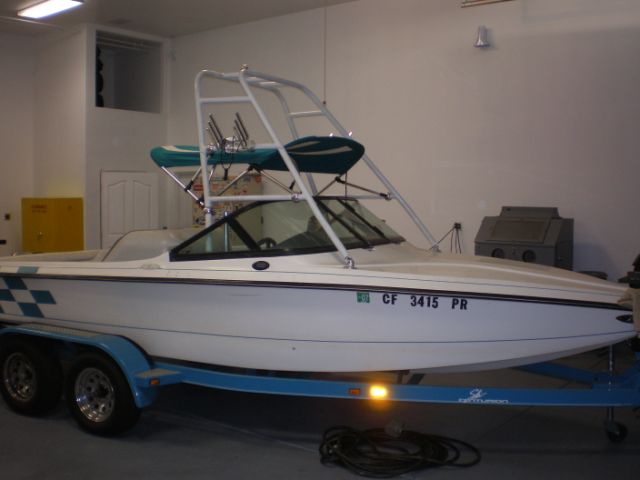

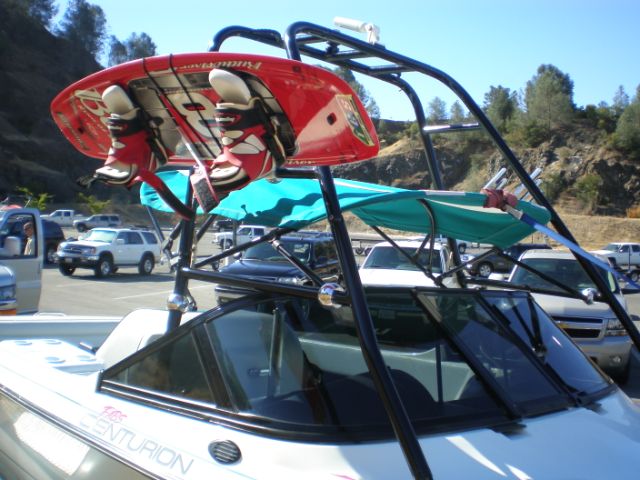

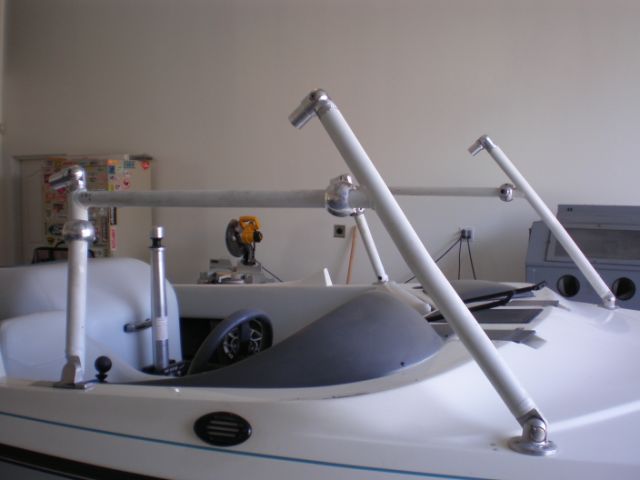

    Centurion Ski Boat

    Pic 1: Before custom fabricated fold down tower.
    Pic 2: Custom fabricated hinge for fold down tower
    Pic 3: Custom fabricated fold down tower with fabricated hinges now installed
    Pic 4: Completed powder coated black, custom fabricated fold down tower with mister nozzles.

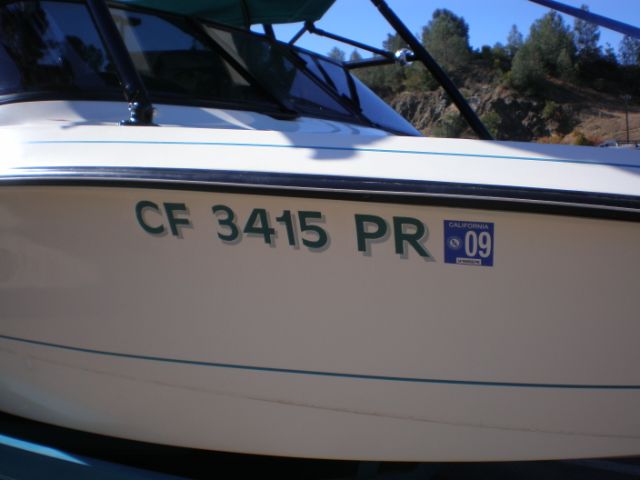

    Pic 5: Custom hand painted CF numbers

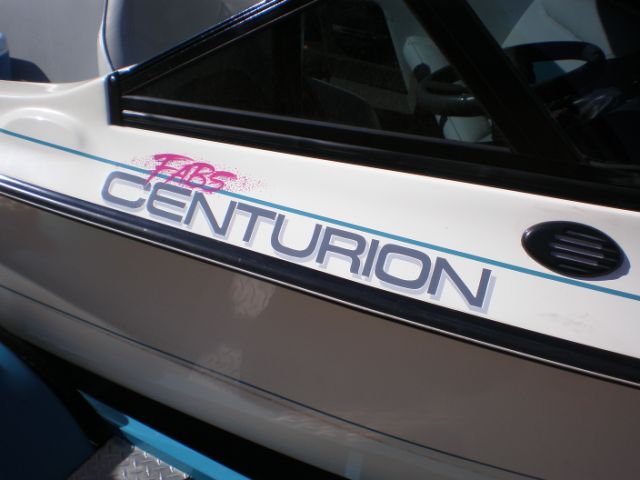

    Pic 6: Custom hand painted "Fabs Centurion"

    Pic 1 | Pic 2 | Pic 3 | Pic 4 | Pic 5 | Pic 6

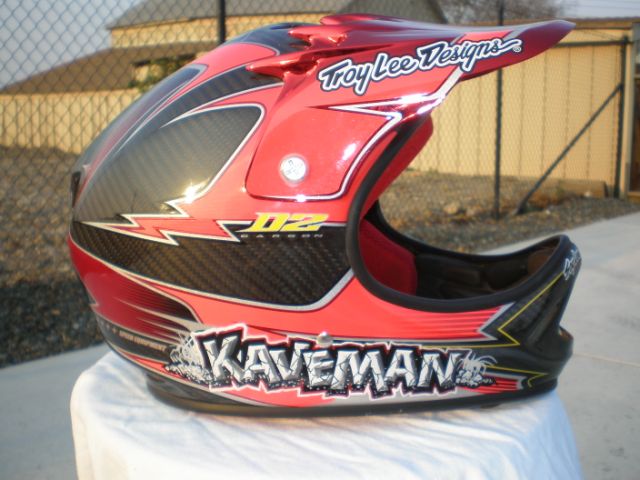

    Custom hand painted helmet

    Pic 1 | Pic 2

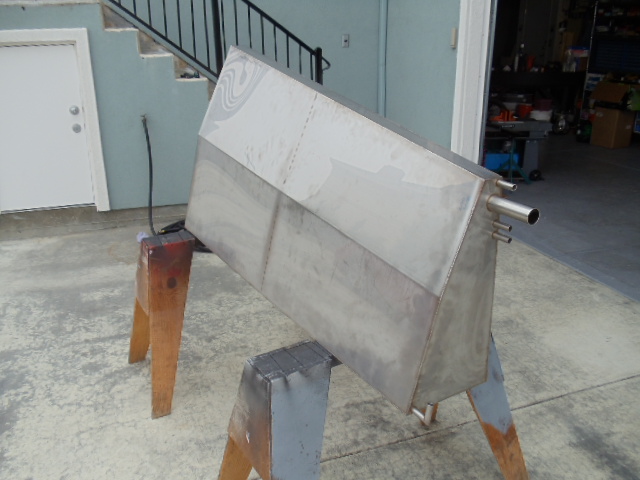

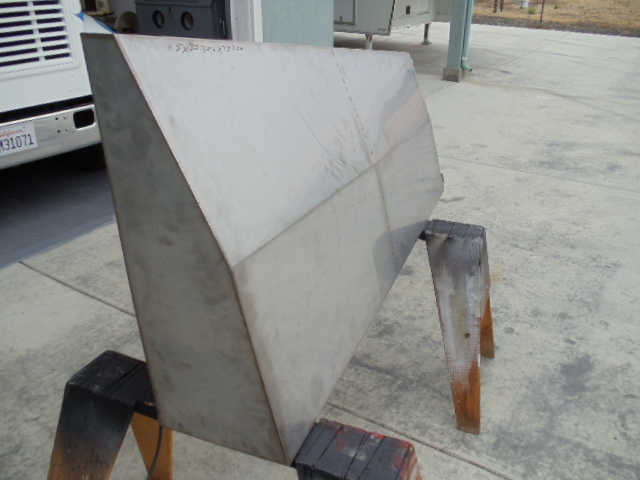

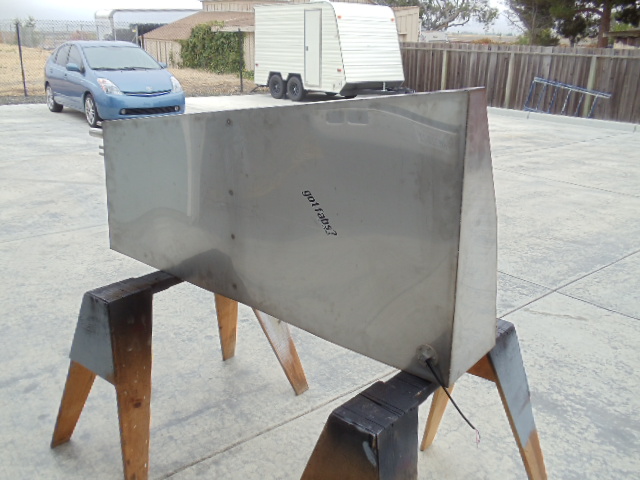

    Custom stainless steel fuel cell tank for yacht

    Pic 1 | Pic 2 | Pic 3

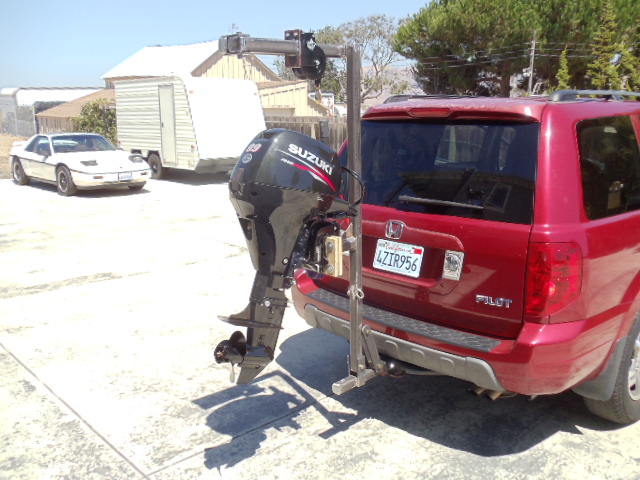

    Custom fabricated motor rack for portaboat

    Pic 1 | Pic 2 | Pic 3

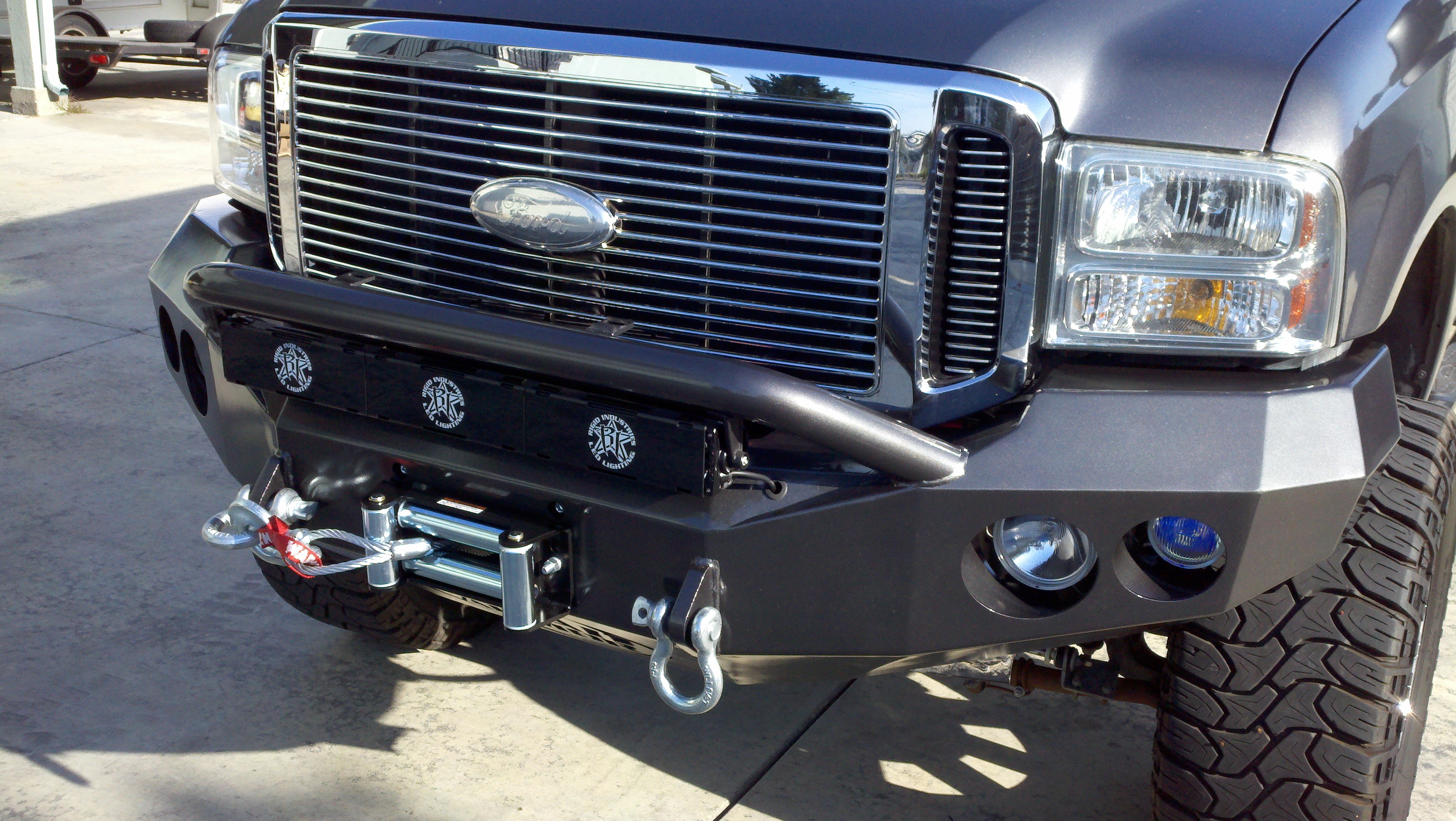

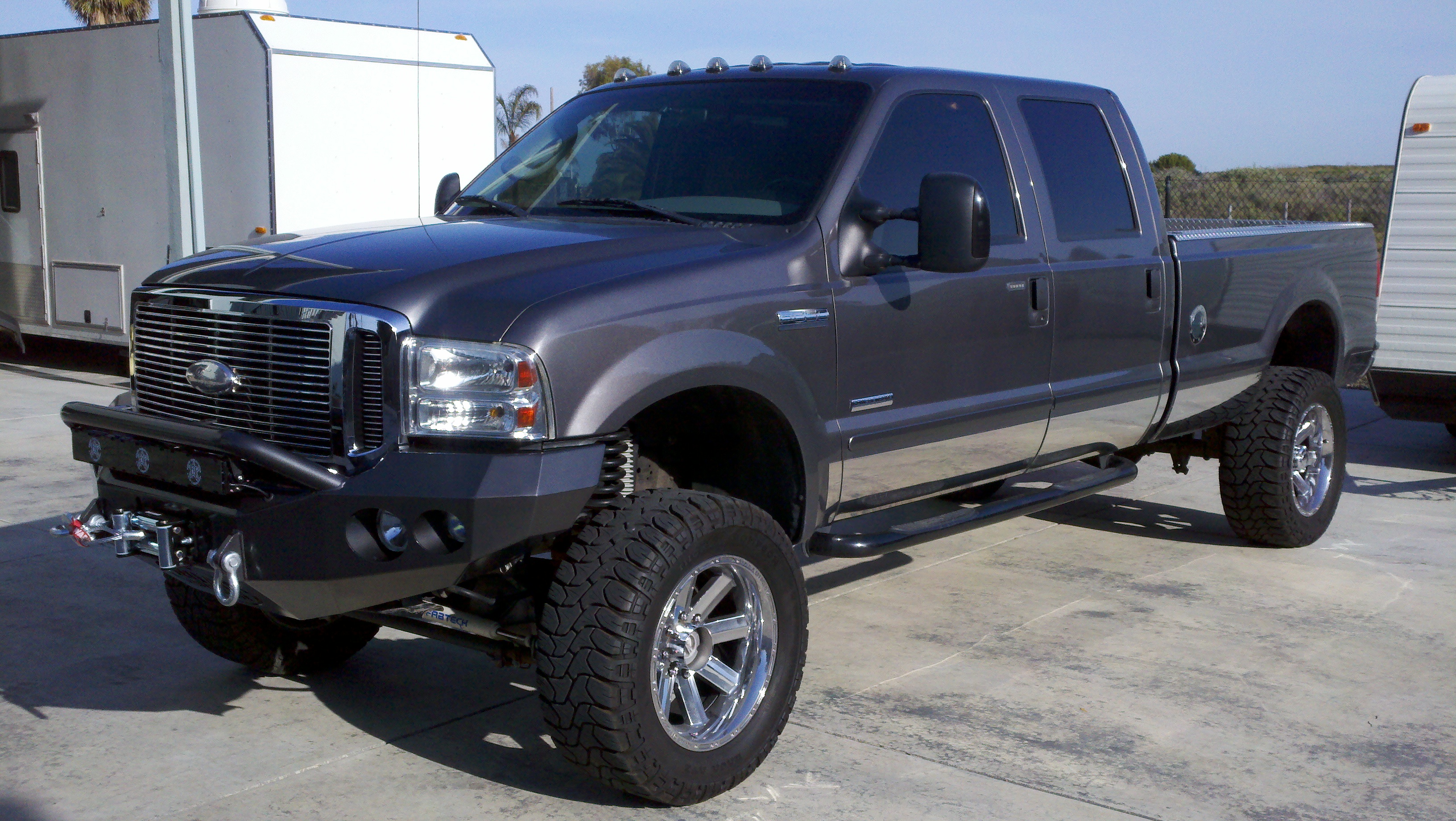

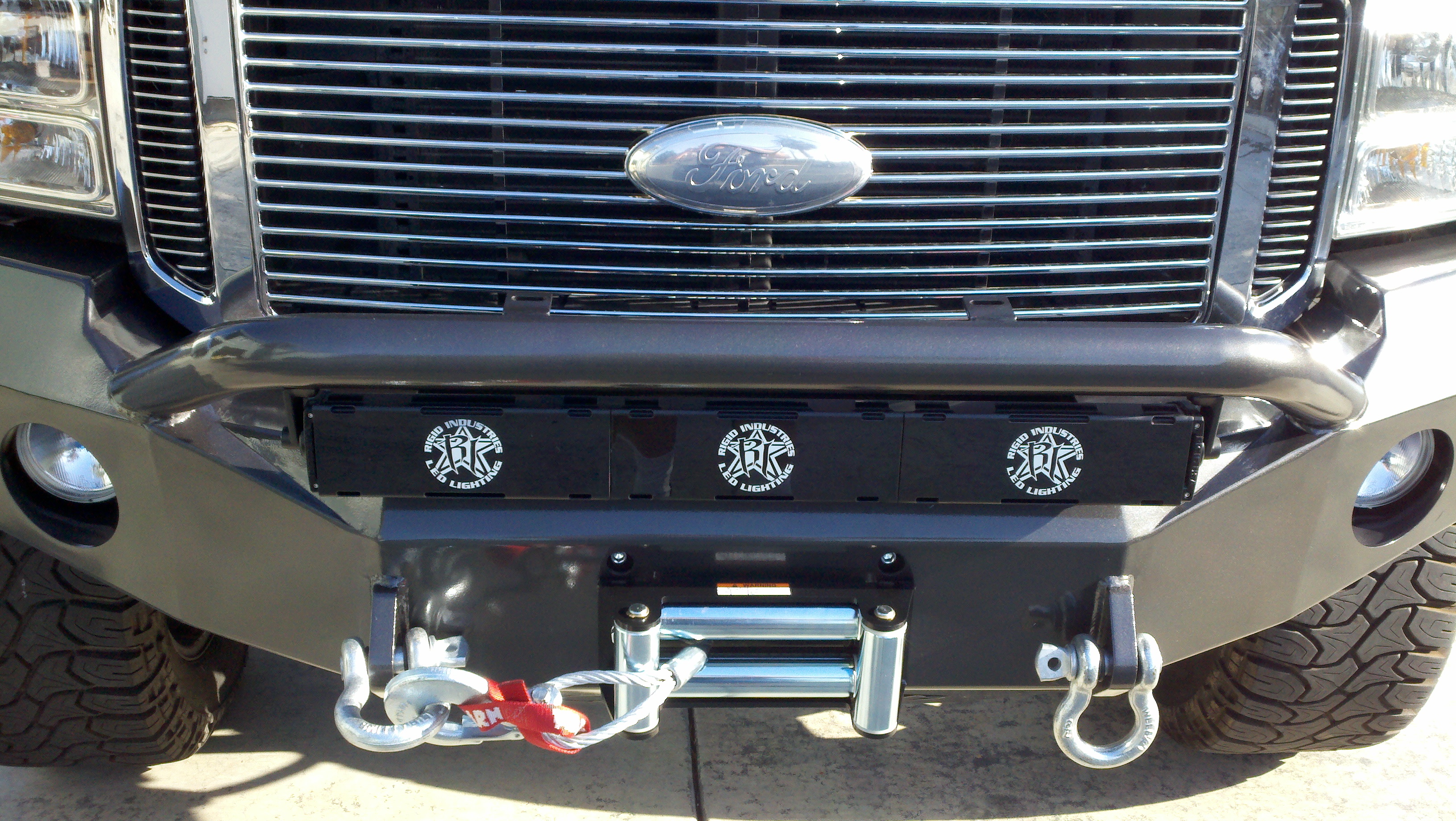

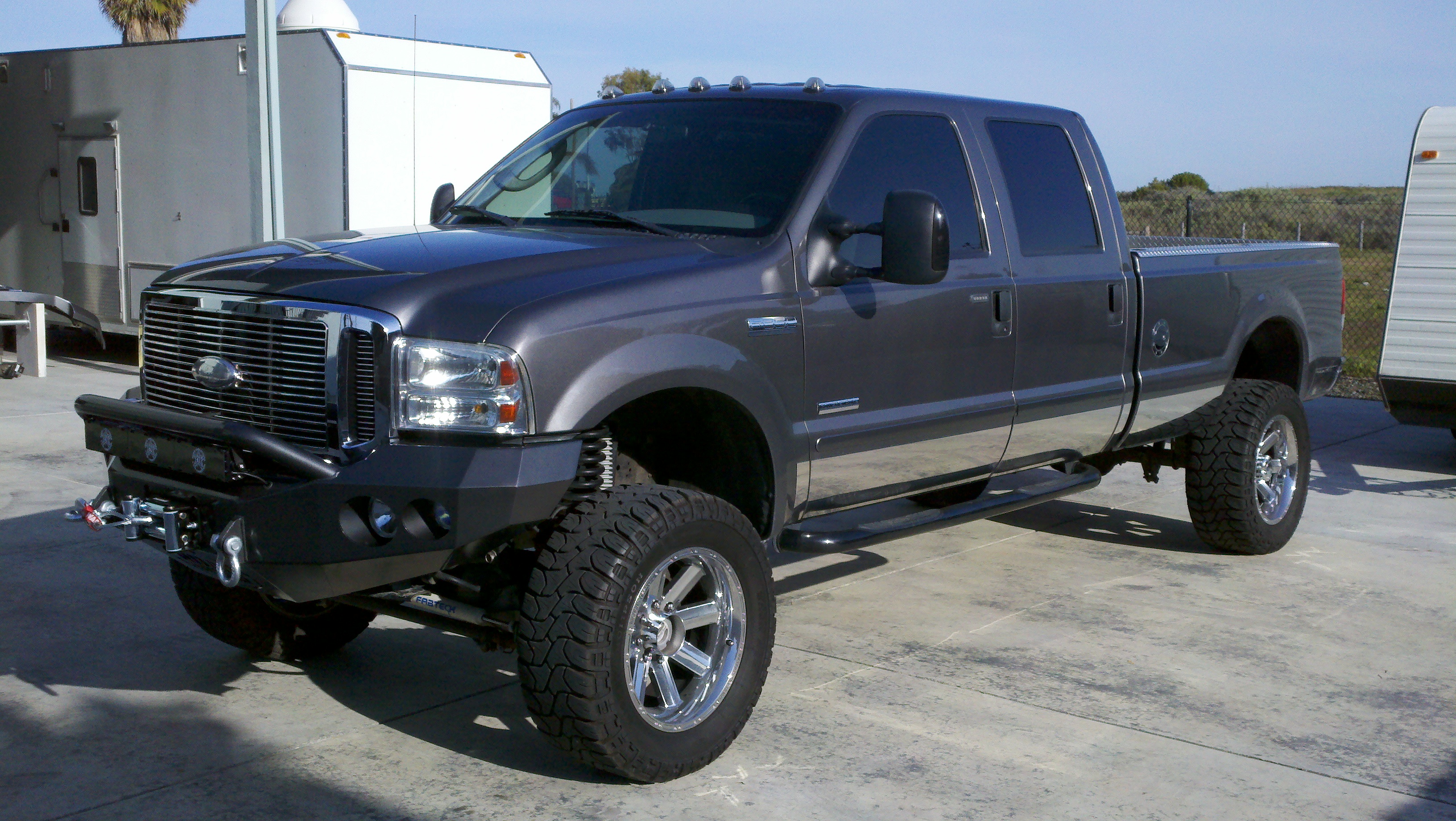

    Ford F350 Super Duty
    Custom front bumper
    Wench
    Rigid LED light bar
    6" inch lift with rims and tires

    Pic 1 | Pic 2 | Pic 3 | Pic 4 | Pic 5
